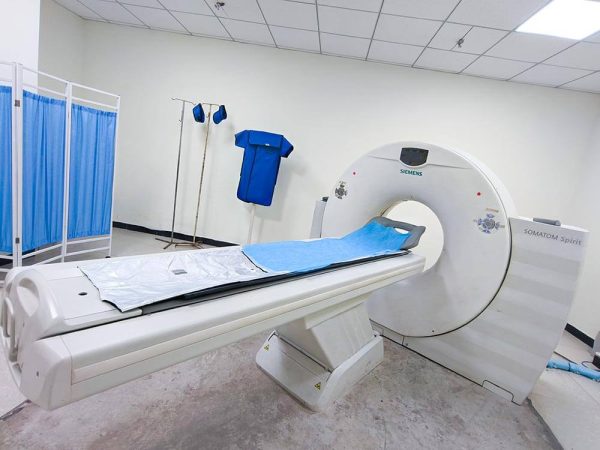

Refurbished Siemens Somatom Spirit CT Scanner

Siemens Somatom Spirit CT Scanner was manufactured in 2012 and has been regularly maintained by an operator in the original hospital and has made an excellent contribution to patient diagnosis, it is now unused due to equipment renewal, the overall operation is smooth and flawless, and it is in good condition and is able to continue to provide service to patients. After payment, we are responsible for packing and shipping in 1-2 weeks. Remote video inspection before payment, full payment before shipment. The parameters are as follows:

Dimensions	Height(mm/inch)	Width(mm/inch)	Length(mm/inch)	Weight(kg /lbs)
Components
Gantry	≤ 1,820/71.7	≤685/27.0	≤2,300/90.6	≤1,200/2,640
Patient table	≤836132.9	≤700/27.5	≤2,473/97.4	≤500/1,024
Operator’s console	≤720/28.3	≤800/31.5	≤1,200/47.2	≤60/132
UPS	≤440/17.3	≤135/5.3	≤490/19.3	≤40/88
Line Connection Box(LCB)	≤820/32.3	≤350/13.7	≤750/29.5	≤110/242
Image reconstruction system	≤450/17.7	≤220/8.7	≤620/24.4	≤30/66
Computer System
syngo Acquisition Workplace	≤450/17.7	≤220/8.7	≤620/24.4	≤30/66
Power Supply		Electromagnetic Compatibility	This product is in compliance with IEC 60601-1-2 and fulfills CISPR II Class A
Nominal voltage ±10%	190-480V	Examination Room Environment
Nominal line frequency ±10%	50;60Hz	Temperature range	18-30℃
Max.power consumption	≤40kVA	Relative air humidity without condensation	20-85%
Power consumption	≤1.0kW standby	Heat dissipation(Gantry)	<3.6kW scanning <4.7kW scanning** ≤1.5kW standby
Mean power consumption	≤3.6kW scanning	Heat dissipation(Computer)	<0.7kW <0.9kW**
Line impedance	100-400mOhm(dependent on voltage)	Surface Area for Installation
Nominal power connection fuse 100 A selectivity	1:1.25	Complete system	14.8-18.0m2/150-194 ft2*
Protection against Input Power Instability		Voltage Fluctuation
X-ray	20ms	Nominal voltage(±10%)	190-480V
Controllers	300ms	Nominal frequency (±10%)	50;60 Hz

SOMATOM Spirit is a dual-slice CT system with sub-second scanning capabilities. It combines more than 30 years of Siemens’ leading technology and expertise in the field of multi slice CT. It combines the latest innovations with successful and proven functions, technologies and components from other products in the SOMATOM series. With its attractive price, the SOMATOM Spirit is not only the ideal CT product for replacing outdated scanning systems or for retrofitting overloaded healthcare facilities. It is also an affordable multi layer scanning system. It will lead healthcare organizations into the exciting world of CT with ease. The SOMATOM Spirit’s 1mm spatial resolution and one second of scanner rotation are features that help physicians achieve excellent clinical outcomes. For even better clinical results, a scanner rotation time of 0.8 seconds is available. The optimised configuration of the SOMATOM Spirit system, the highly efficient Ultra-Fast Rare Earth Ceramic (UFC) detector material, as well as the Siemens dose reduction software CARE Dose and the automated contrast agent tracking software CAREBolus ensure that X-rays are used efficiently. All these features result in excellent image quality while significantly reducing the radiation dose. SOMATOMSpirit is the ideal CT product for replacing outdated scanning systems or for retrofitting overloaded healthcare facilities with an affordable multilayer scanning system. With its excellent technical performance and high return on investment, it provides hospitals with a solution to easily enter the multislice CT era.
