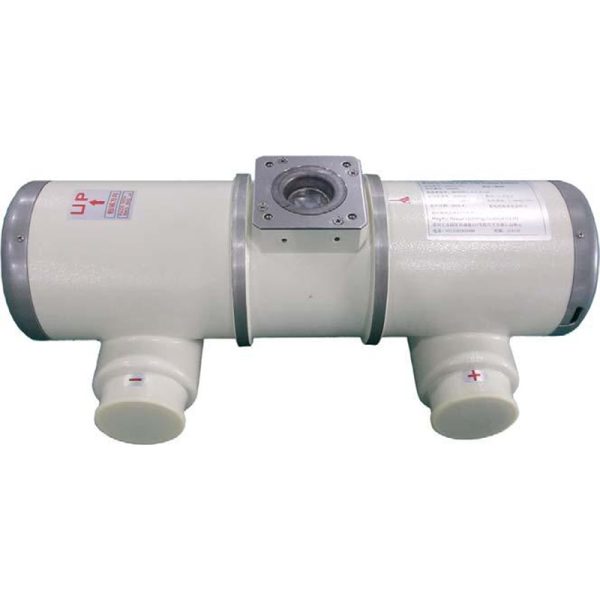

| MWHX7620 | Tube | A | High voltage socket with 90 degree direction |
| MWTX76-0.6/1.2-150 | B | High voltage socket with 270 degree direction |
| Technical Data |
| Property | Specification | Standard |
| Nominal input power(s) of the anode | F1 | F2 | IEC 60613 |
| 20kW(50/60Hz) | 50kW(50/60Hz) | - |
| Anode heat storage capacity | 210kJ (300 kHU) | IEC 60613 |
| Maximum cooling capacity of the anode | 870W | - |
| Heat storage capacity | 900kJ | - |
| Max. continuous heat dissipation without Air-circular | 180W | - |
Anode material
Anode top coating material | Rhenium-Tungsten-TZM(RTM)
Rhenium-Tungsten-(RT) | - |
| Target angle (Ref: reference axis) | 12° | IEC 60788 |
X-ray tube assembly inherent
filtration | 1.5 mm Al/75kV | IEC 60601-1-3 |
| Focal spot nominal value(s) | F1(small focus) | F2(large focus) | IEC 60336 |
| 0.6 | 1.2 | - |
X-ray tube nominal voltage
Radiographic
Fluoroscopic | 150kV
125kV | IEC 60613 |
| Data on cathode heating | ≈/AC,<20 kHz | - |
| Max.current | F1 | F2 | - |
| Max voltage | 5.2A
≈6.8~9.2V | 5.4A
≈11.9~16.1V | - |
Leakage radiation at 150 kV / 3mA in
1m distance | ≤1.0 mGy/h | IEC60601-1-3 |
| Maximum radiation field | 430X430mm at SID 1m | - |
| X-ray tube assembly weight | Approx. 18 kg | - |
