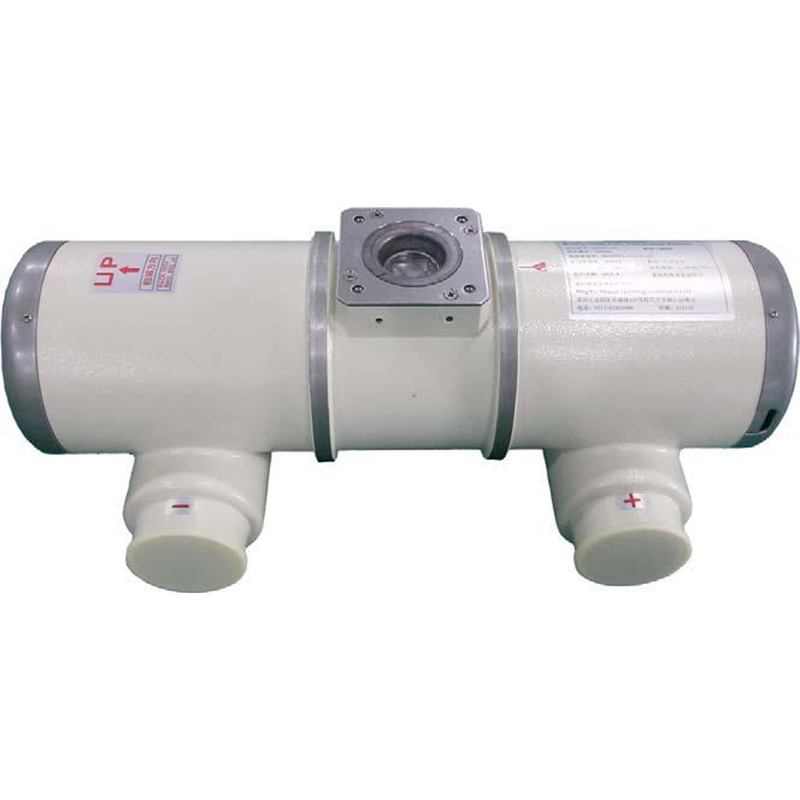

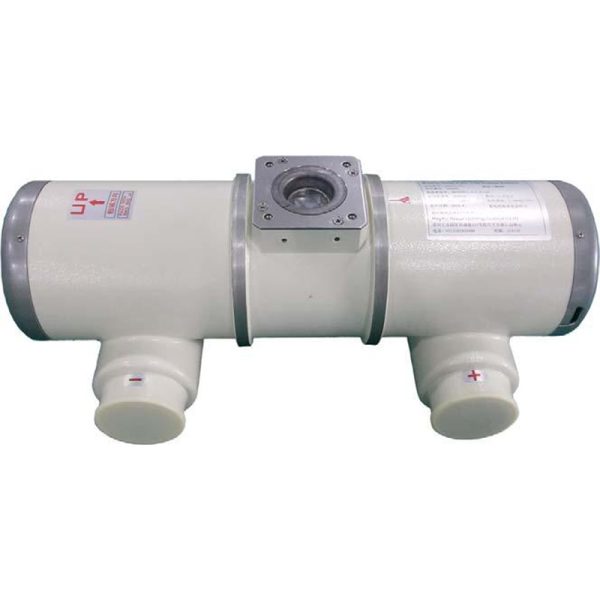

Rotating Anode X‐Ray Tube Assembly MWHX7110A

SKU: MWHX7110A Category:

Technical Parameter

  1. X-ray tube assembly for all routine diagnostic examinations with conventional or digital radiographic and fluoroscopic workstations
  2. The insert features: 12.5° Rhenium-Tungsten molybdenum target (RTM)
  3. Focal spots: Small 0.6, Large: 1.2
  4. Maximum tube voltage: 125kV
  5. Accommodated with IEC60526 type high-voltage cable receptacles
  6. High voltage generator should accord with IEC60601-2-7
  7. IEC Classification (IEC 60601-1:2005): Class I ME EQUIPMENT
    PropertySpecificationStandard
    Nominal input power(s) of the anodeF1
    20kW(50/60Hz)
    F2
    40kW(50/60Hz)
    IEC 60613
    Anode heat storage capacity110 kJ (150 kHU)110 kJ (150 kHU)IEC 60613
    Maximum cooling capacity of the anode500W500W
    Heat storage capacity900kJ900kJ
    Max.continuous heat dissipation without Air-circular180W180W
    Anode material
    Anode top coating material
    Rhenium-Tungsten-TZM(RTM)
    Rhenium-Tungsten-(RT)
    Rhenium-Tungsten-TZM(RTM)
    Rhenium-Tungsten-(RT)
    Target angle (Ref: reference axis)12.5°12.5°IEC 60788
    X-ray tube assembly inherent filtration1.5 mm Al / 75kV1.5 mm Al / 75kVIEC 60601-1-3
    Focal spot nominal value(s)F1(small focus)
    0.6
    F2(large focus)
    1.2
    IEC 60336
    X-ray tube nominal voltage
    Radiographic
    Fluoroscopic
    125kV
    100kV
    125kV
    100kV
    IEC 60613
    Data on cathode heating

    ≈/AC,< 20 kHz≈/AC,< 20 kHz
    F1F2
    Max.current
    Max voltage
    5.1A
    ≈7~9V
    5.1A
    ≈12~14V
    Leakage radiation at 150 kV / 3mA in
    1m distance
    ≤1.0 mGy/h≤1.0 mGy/hIEC60601-1-3
    Maximum radiation field443X443mm at SID 1m443X443mm at SID 1m
    X-ray tube assembly weightApprox. 18 kgApprox. 18 kg
