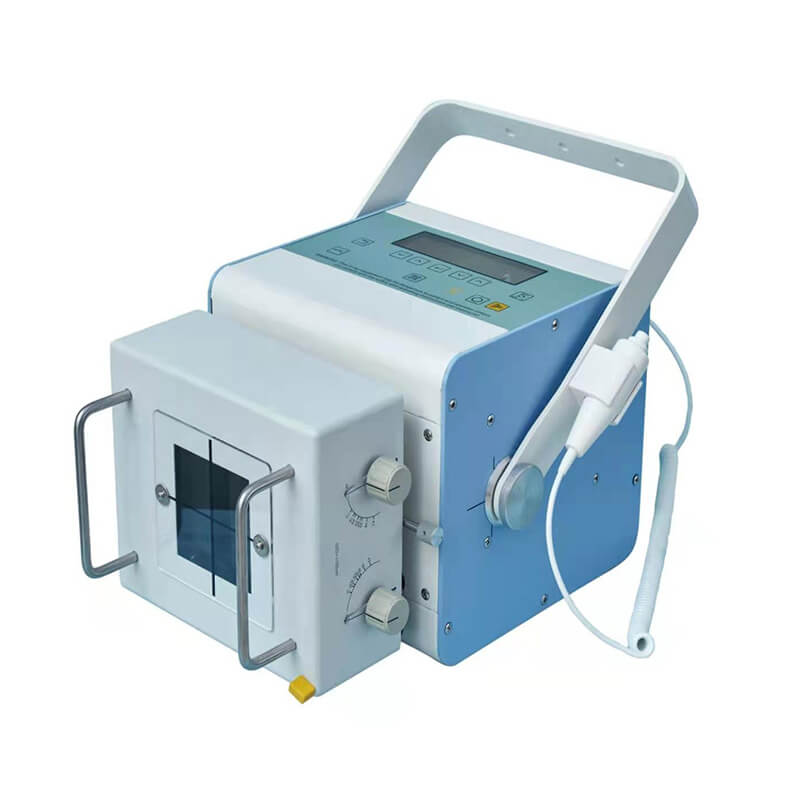

3.5kw Portable X-Ray Generator XR35RP

Technical Parameter

1. Max Output Power: 3.5kw
2. Power Capacity: 70kv@50mA
3. Photography KV Range: 40-100KV
4. Photographic mA Range: 32-50mA
5. mAs Range: 0.32-200mAs
6. Exposure Time Range: 0.01-4s
7. Operating Frequency: ≥ 60kHz
8. Input Power Type:220V ±10%, 50Hz/60Hz Or 110V ±10%, 50Hz/60Hz
9. Machine Dimension:370mm ×300mm×240mm（With Beam Limit）
10. Weight: 21KG
11. Inverter Way: PWM(Pulse width modulation)
