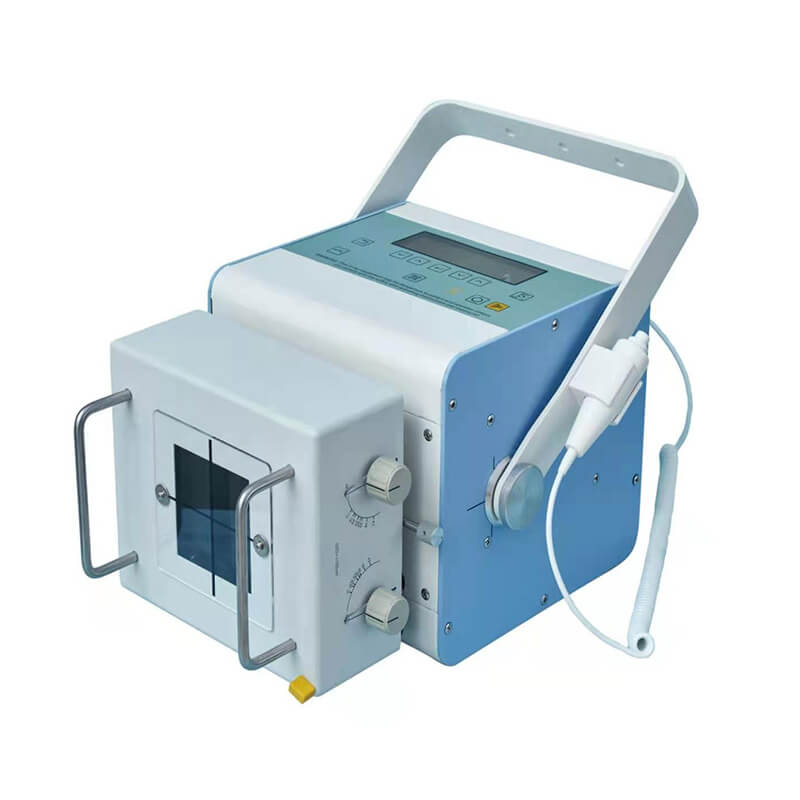

8kw Portable X Ray Machine Generator XR80RP

Technical Parameter

1. Max Output Power: 8.0kw
2. Power Capacity: 100kv@80mA
3. Photography KV Range: 40-125KV
4. Photographic mA Range: 32-125mA
5. mAs Range: 0.32-400mAs
6. Exposure Time Range: 0.01-6.3s
7. Operating Frequency: ≥ 60kHz
8. Input Power Type:220V ±10%, 50Hz/60Hz Or 110V ±10%, 50Hz/60Hz
9. Machine Dimension:370mm ×300mm×240mm（With Beam Limit）
10. Weight: 21KG
11. Inverter Way: PWM(Pulse width modulation)
