Technical Parameter

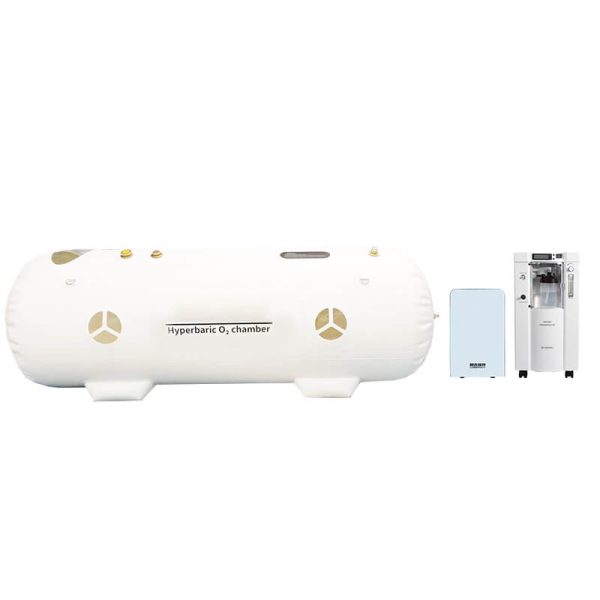

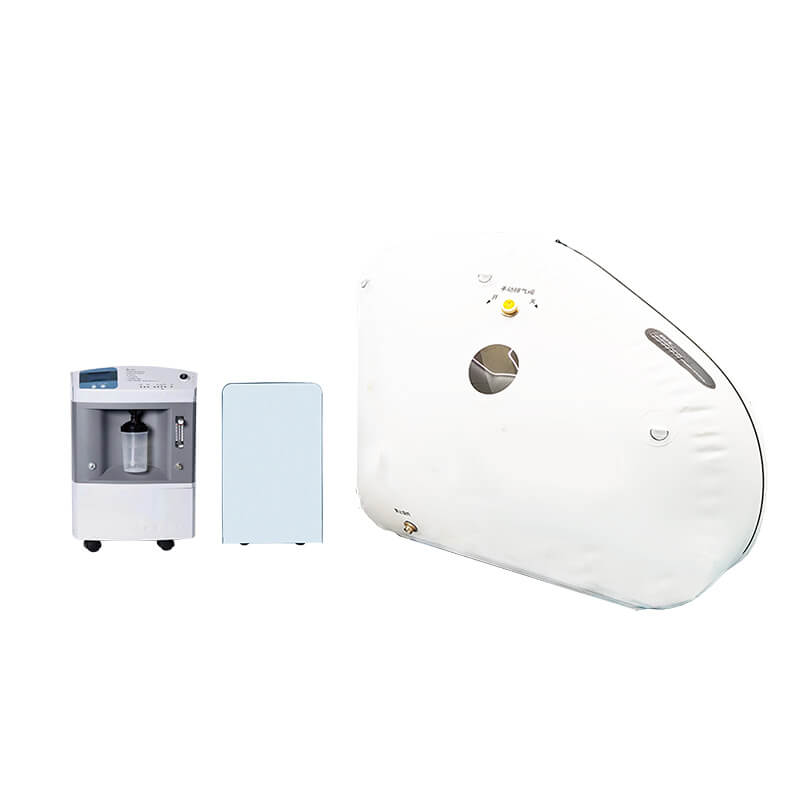

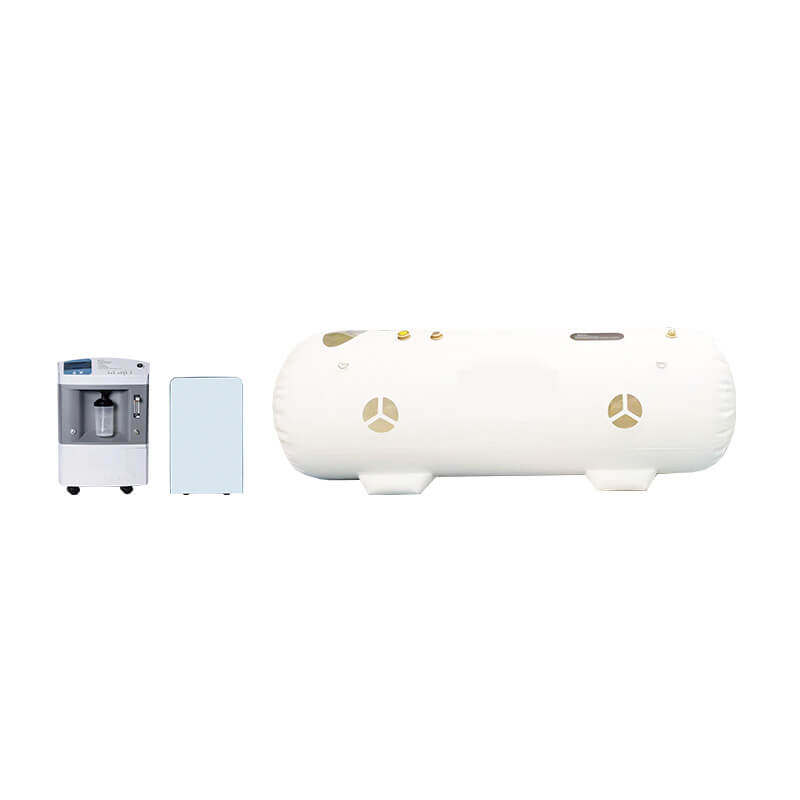

1. Hyperbaric Oxygen Chamber Capsule:
a) Pressure: 1.3ATA/1.5ATA
b) Material: TPU
c) Size: 80*200cm( 31.5″*78.7″)
d) Weight:12.5kg(27.5lb)
e)Packing Size: 90*35*40cm(35.4″*13.7″*15.7″)
f)Packing Weight: 15kg(33lb)
2. Oxygen Concentrator:
a) Rate:5L/min
b) Oxygen Output: 0.14Mpa
c) Size: 36.5*37.5*60cm(14.3″*14.7″*23.6″)
d) Weight:27kg(59.51lb)
e) Packing Size:45*45*70cm(17.7″*17.7″*27.5″)
f) Packing Weight: 30kg(66lb)
3. Air Compressor:
a) Output: 110L/min
b) Efficiency: It takes about 5 minutes to reach 1.3ATA
c) Size:40*24*40cm( 15.7″*9.4″*15.7″)
d) Weight: 13.5kg(29.7lb）
e) Packing Size:50*30*50cm(19.6″*11.8″*19.6″)
f) Packing Weight: 15kg(33lb)
4. Air Cooler:
a)Air intake: 40″
b) Air outlet:17″
c) Output:120 L/min
d) Size: 31*31*21cm(12.2″*12.2″*8.2″)
e)Weight:6.6Kg(14.5lb)
f)Packing Size: 35*35*25cm(13.7″*13.7″*9.8″)
g)Packing Weight:7kg(15.4lb）
