Technical Data Sheet – Release V1.0

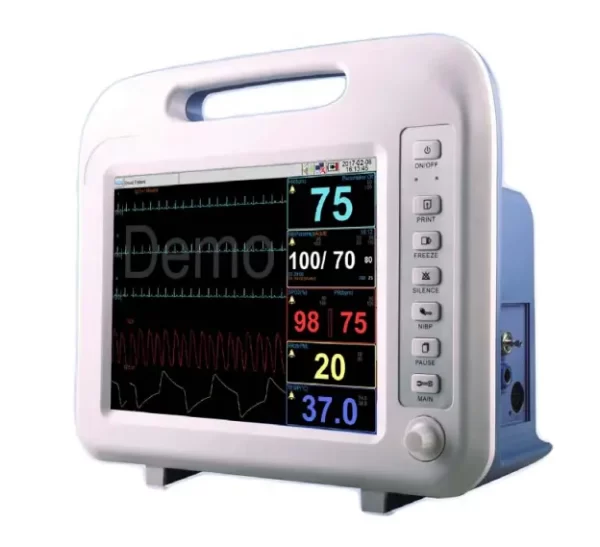

The F6 patient monitor is designed to match the pace and unique needs of adult, pediatric, and neonatal intensive care; anesthesia and peri-operative care; OR and cardiac care environments. Pacemaker detection and Arrhythmia analysis.
An optional USB Mouse/Keyboard control eases navigation and data entry. Humane fashion design and handle of humanized integration design, easy to carry.
Designed without fan, characterized with no noise and lower consumption.
Features
Core
Newly advanced A9 main board with Linux OS, calculating speed is 4 times faster than traditional products
Support storage of 2160 hours trend table and graph review, 2 hours waveform review, 2000 groups NIBP review and 2000 alarm events review
Body
- 12.1 inch high-brightness TFT LED
- Support display 9~12 waveforms
- Support 7 channel ECG waveform display
- Optional touch screen
Printer
Built-in high-speed 50mm thermal printer (Brand: SEIKO, Japan)
Central System
Support wired/wireless connection to the central monitoring station.
Alarm
- Three-level acousto-optic alarm
- Sensor-off alarm
- Paper out alarm
- Support alarm review
- Support alarm pause
Support operation with mouse and computer keyboard (option)
Multi-display mode to meet different clinical requirement, including standard, big font, OxyCRG, trend graph, NIBP review and full leads ECG interface.
NIBP self-test mode: including overpressure test, static pressure test and air leakage test.
Generate ID automatically when register a new patient
Support medical history search by patient ID, name and mobile number
18 types of Arrhythmia analysis and real-time S-T segment analysis and pacemaker detection
Drug calculation and titration table
Support multi-language display
Support online software upgrading by net/USB
