Technical Parameter:

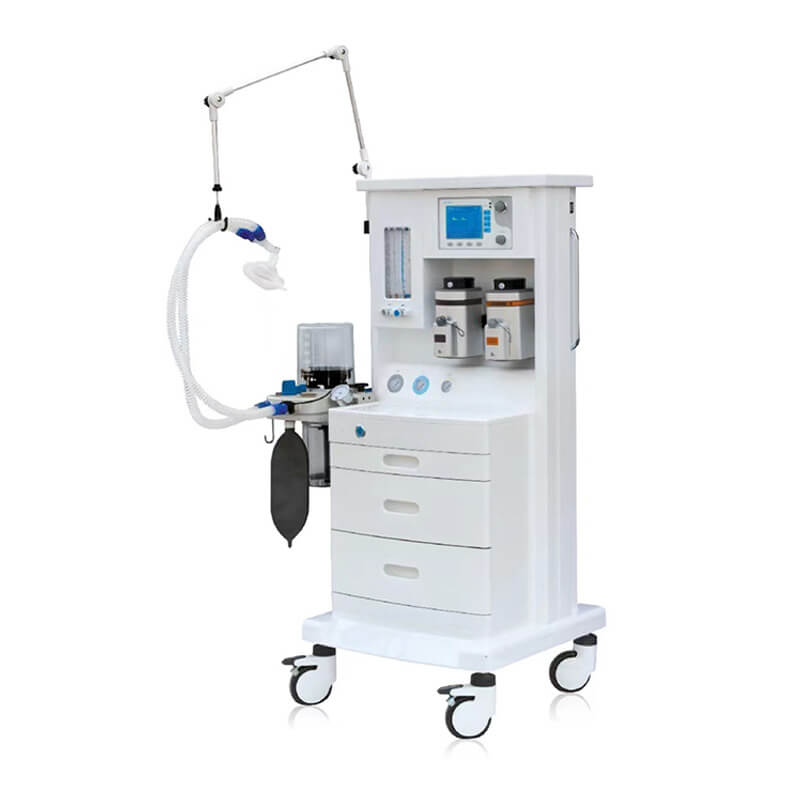

Anesthesia Machine
1. Main body: High-strength engineering plastic rack
2. Scope of application: adult, child
3. Gas source: O2:0.28-0.6MPa N2O:0.28-0.6Mpa
4. Flow rate of rapid oxygen supply: 25-75L/min
5. Low Oxygen Pressure Alarn:<0.2Mpa
6.O2&N2O Linkage and N2O Stopper: When using nitrous oxide, Oxygen concentration >25%; When the oxygen pressure <0.2Mpa, the flow of nitrous oxide would be cut off
7. Vaporizer: Among Halothane, Enflurane, Isoflurane, and Sevoflurane, two can be chosen for application as the customer requires. Vaporizers that are imported with original packaging are also available
8. Respiratory Circuit: All close, Semi-close, Semi-open.APL:<=12.5kpa
Ventilator
1. Display Mode: High-definition 5.7’’ LCD screen display
2. Ventilation mode: IPPV, SIPPV, SIMV, MANUAL
3. Ventilation function: PEEP, SIGH, IRV
4.Power: AC 220V 50Hz(UPS, Strong battery)
Packing Details:
1. Box1:
Size: 760x760x1470mm
Weight: 90kg
2. Box2:
Size: 820x430x440mm
Weight: 32kg
